Product.Nr. SQ-1200
SQ-1200 Class-H Amplifier
EUR 499,00
incl. 19 % VAT excl. shipping costs
weight 24 kg
product description
SQ-1200 Class-H Amplifier
2U Class-H Amplifier
Our state-of-the-art Class H design will amaze you with its incredible power amplification. The SQ-series is the best on the market. Its wide range of amplifier performance is amazingly cost-efficient and flexible. Choose from seven different models, ranging from 2 x 900W @ 4 ohms to 4 x 1200W @ 4 ohms. The Class H output stage is powered by an oversized analog power supply with a strong toroidal transformer, ensuring stable performance even under weak or unstable mains supplies. The front panel is equipped with a power switch and several LEDs to display the working status, making it easy to monitor the amplifier's status.
| Model Name | SQ-1200 |
|---|---|
| GS1 (EAN) CODE | 4260318511940 |
| System Type | 2-Channel Class H |
| Output Power all channels driven 20Hz - 20 kHz, 0.1 % THD |
2 x 1200W @ 2Ohm 2 x 900W @ 4Ohm 2 x 600W @ 8Ohm |
| Output Power Bridge mode |
1 x 2400W @ 4Ohm 1 x 1800W @ 8Ohm 1 x 1200W @16Ohm |
| THD+N @ 8Ω 1kHz,1dB | ≤0.05% |
| Slew Rate | >26v/μs |
| Frequency Response @1Watt, 8Ohm |
≤0.5% @ 8Ω 1kHz |
| Damping Factor (@100Hz) |
>3000 @100Hz |
| Signal to Noise Ratio 20Hz -20 kHz |
>100dB |
| Channel Separation Crosstalk@1kHz |
>70dB |
| Voltage Gain | 39dB (0,775V:69.5V) |
| Input Sensitivity | selectable 0.775V/1V/1.4V/2V |
| Input Impedance | 20k Ohm Balanced 10k Ohm Unbalanced |

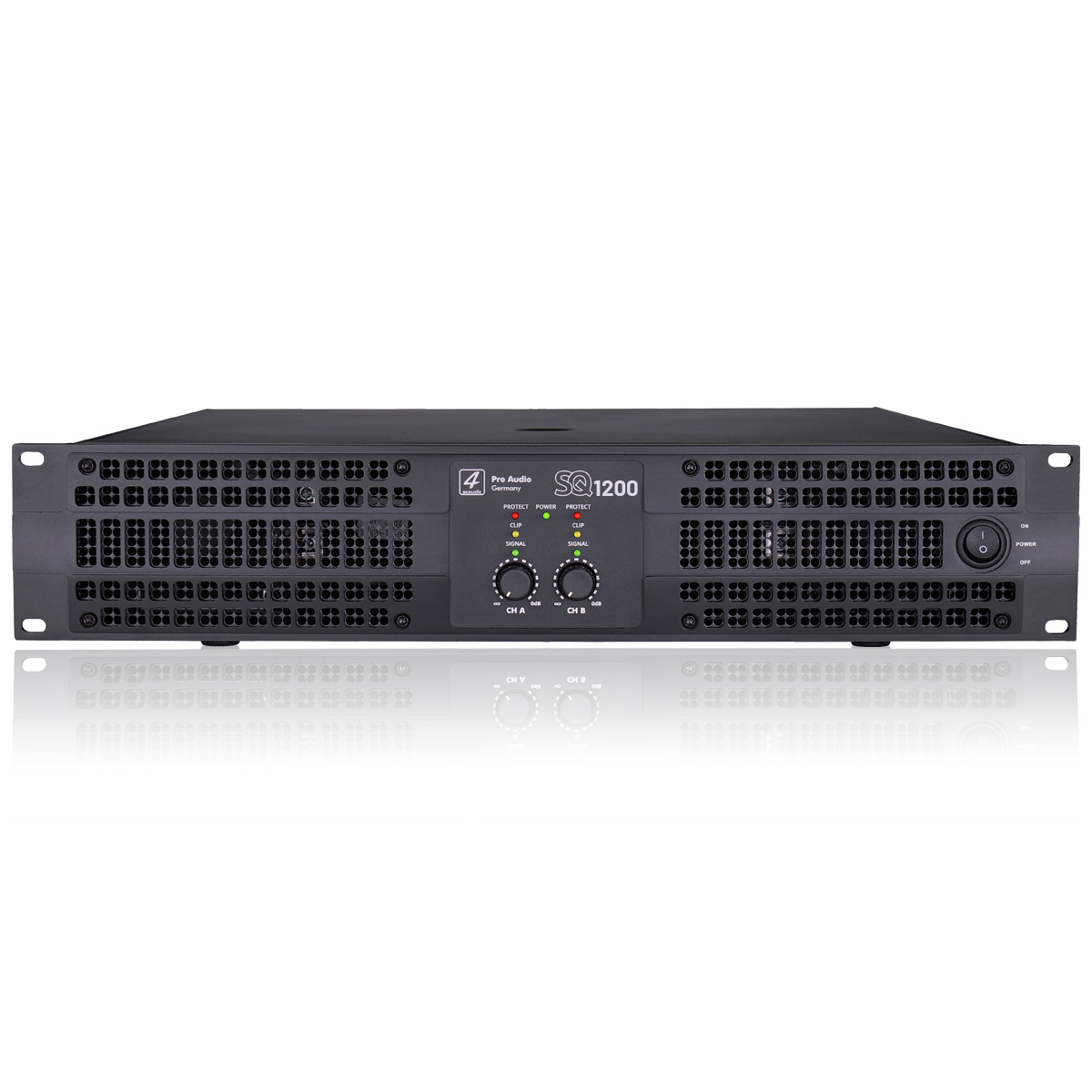

| Front Control | Power switch, Gain control |

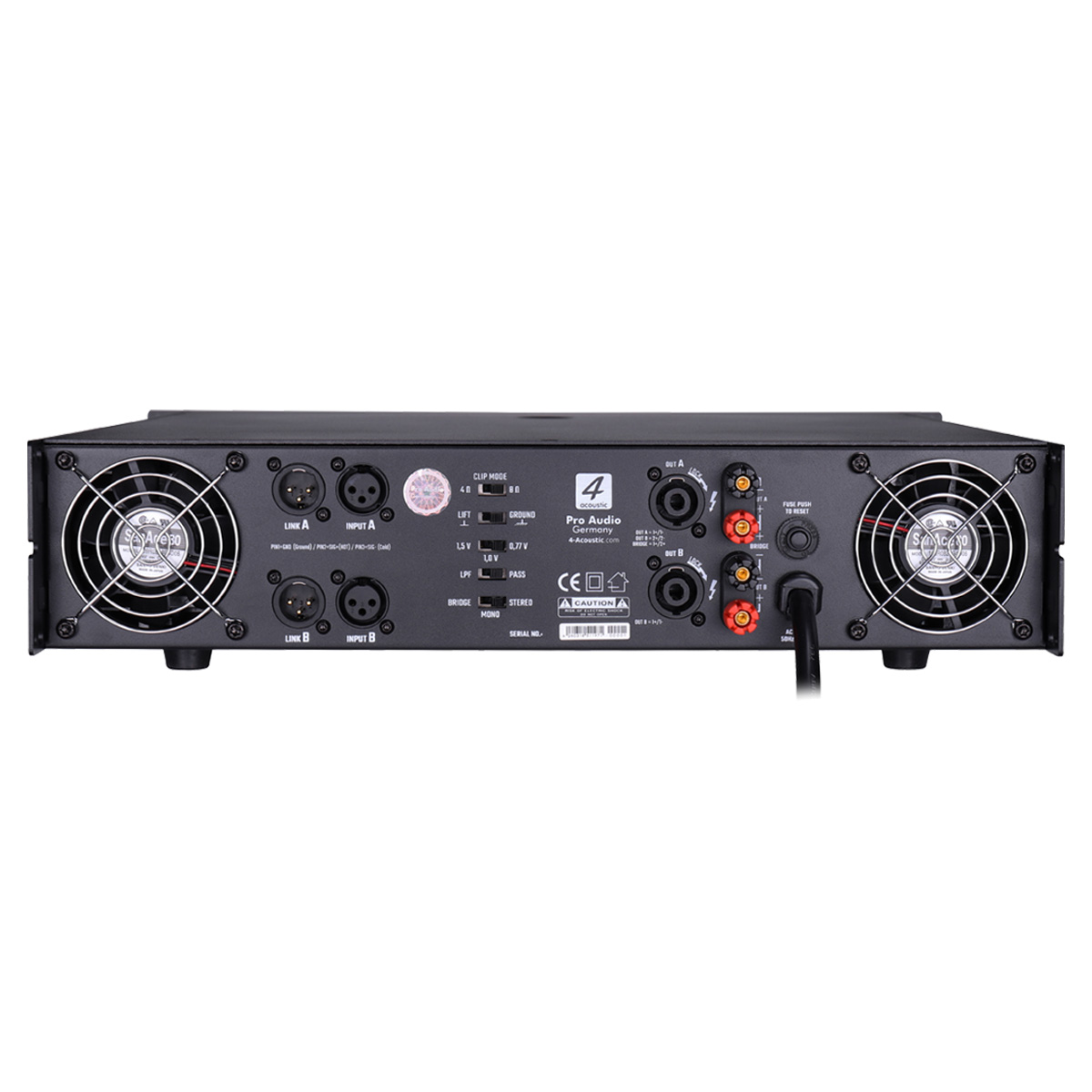

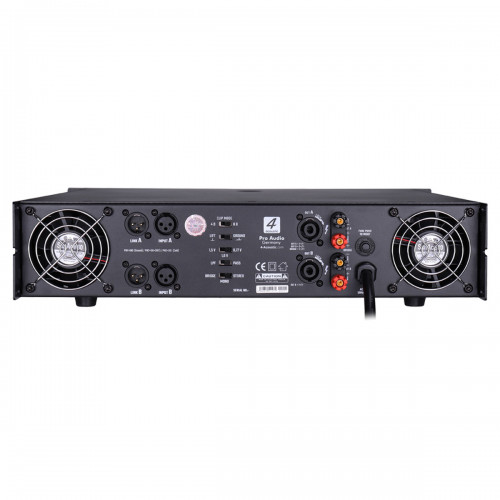

| Rear Control | Sensitivity Switch, Mode Switch |
| LED Indicators | Signal, Clip, Protect |
| Input Connectors | XLR Active balanced pin1 gnd / pin 2+ / pin3- |
| Output Connectors | 2 NL4 Speaker Sockets, 2 x Binding Posts |
| Cooling | Low Noise Continuously Variable speed fan |
| Protection | Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
| Load Protection | On/Off muting DC fault |
| Operating Voltage | 230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
| Idle Power Consumption |
< 38W |
| Max. Power Consumption |
< 980W |
| Fuse | T-15A |
| Dimensions (h/w/d) | 19“/2U 483mm×486mm×90mm |
| Net weight | 24,5 kg |
Downloads
| file | file size |
|---|---|
| SQ-Series-Flyer-DIN-A4-Print-REV01-0920.pdf | 2.45 MB |
| SQ-Series-Operation-Manual-Sizes-Print-REV01-1020.pdf | 8.36 MB |
