SX-25000 Class D Endstufe


SX-25000 Class D Endstufe
SX-25000 Class D Endstufe

Art.Nr. SX-25000

SX-25000 Class D Endstufe

EUR 1.900,00

inkl. 19 % USt zzgl. Versandkosten


Gewicht 10 kg

Nur gegen Vorbestellung


4-Acoustic


0.0 von 5 Sternen


  Mehr Details   Downloads   4-Acoustic

Produktbeschreibung

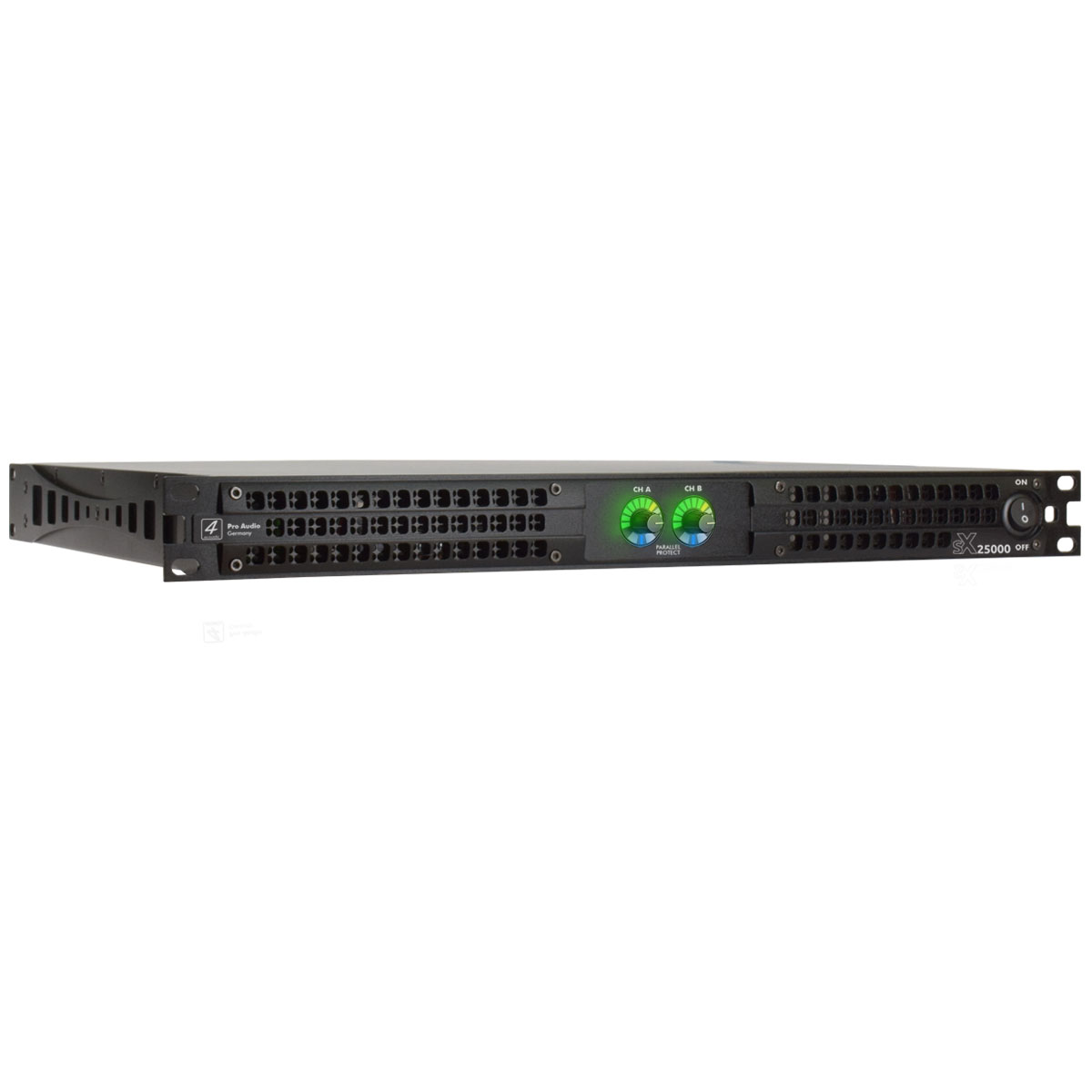

SX-25000 Class D Endstufe

The new SX series
The new power engine of your sound system

Reliable even under hard touring and stage conditions the SX Series will drive your speaker with pure sound and less distortions. Very low noise temperature-controlled fans make this state of art amplifier series suitable for touring and fixed installations. Powerful up to 4 x 3800 Watt or 2 x 6000 @ 2 Ohm the SX series offer enough power even for huge subwoofer cluster. The digital controlled SMPS power supply offers stable working conditions and high efficiency even under weak or unstable mains supplies. Compact and with a depth of 402 mm the 1U high case weighs only 8,4 Kg. All connectors are original Neutrik. Powercon for the mains connection, NL4 Speakon for the speaker outputs and XLR for the input signals. At the backside are dip switches to select the working mode and input sensitivity. The front panel is equipped with a power switch and multi-function LED displays.

Model Name SX-25000
GS1 (EAN) CODE 4260318511858
System Type 2-Channel Class D Amplifier
Output Power
all channels driven
20Hz - 20 kHz, 0.1 % THD
2 x 6000W @ 2Ohm
2 x 4300W @ 4Ohm
2 x 2600W @ 8Ohm
Output Power
Bridge mode
-
-
THD+N @ 8Ω 1kHz,1dB ≤0.05%
Slew Rate >30v/μs
Frequency Response
@1Watt, 8Ohm
10Hz -20kHz / ±0.35dB
Damping Factor
(@100Hz)
>5000
Signal to Noise Ratio
20Hz -20 kHz
>99dB
Channel Separation
Crosstalk@1kHz
>70dB
Voltage Gain 45.4dB (0,775V:144V)
Input Sensitivity selectable 0.775V/1V/1.4V/2V
Input Impedance 20k Ohm Balanced
10k Ohm Unbalanced
Front Control Power switch, Gain control
Rear Control Sensitivity Switch,
Mode Switch
LED Indicators Signal VU Meter
Protect,
Parallel
Input Connectors XLR Active balanced
pin1 gnd / pin 2+ / pin3-
Output Connectors 2 Neutrik NL4 Sockets
2 Binding Posts
Cooling Low Noise Continuously Variable
speed fan
Protection Full short circuit, Open circuit,
thermal, Ultrasonic, RF Protection.
Stable Into reactive or
Mismatched loads
Load Protection On/Off muting
DC fault power
Supply shutdown
Operating Voltage 230V (+/- 10%), 50-60Hz
USA Version
110V (+/- 10%), 50-60Hz
Idle
Power Consumption
< 165W
Max.
Power Consumption
< 5000W
Fuse T-30A
Dimensions (h/w/d) 19“/1U 483W x 402D x 44H
Net weight 8,4 kg

0.00 Bewertungen

Bewertung schreiben

Downloads

Datei Dateigröße
   SX-Series-Operation-Manual-Print-REV01-0820.pdf 9.61 MB
   SX-Series-Flyer-DIN-A4-Print-REV02-0920.pdf 2.60 MB
